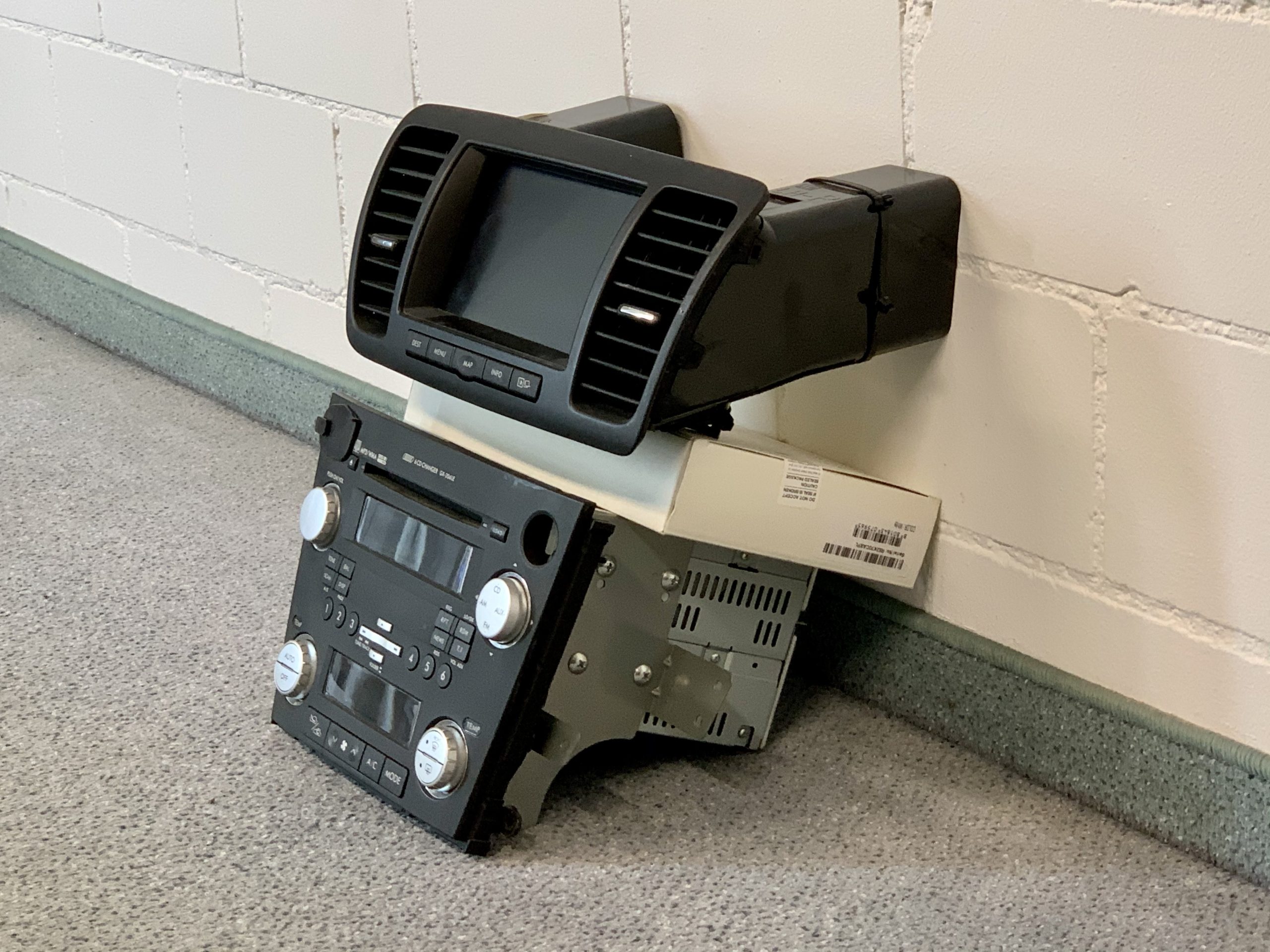

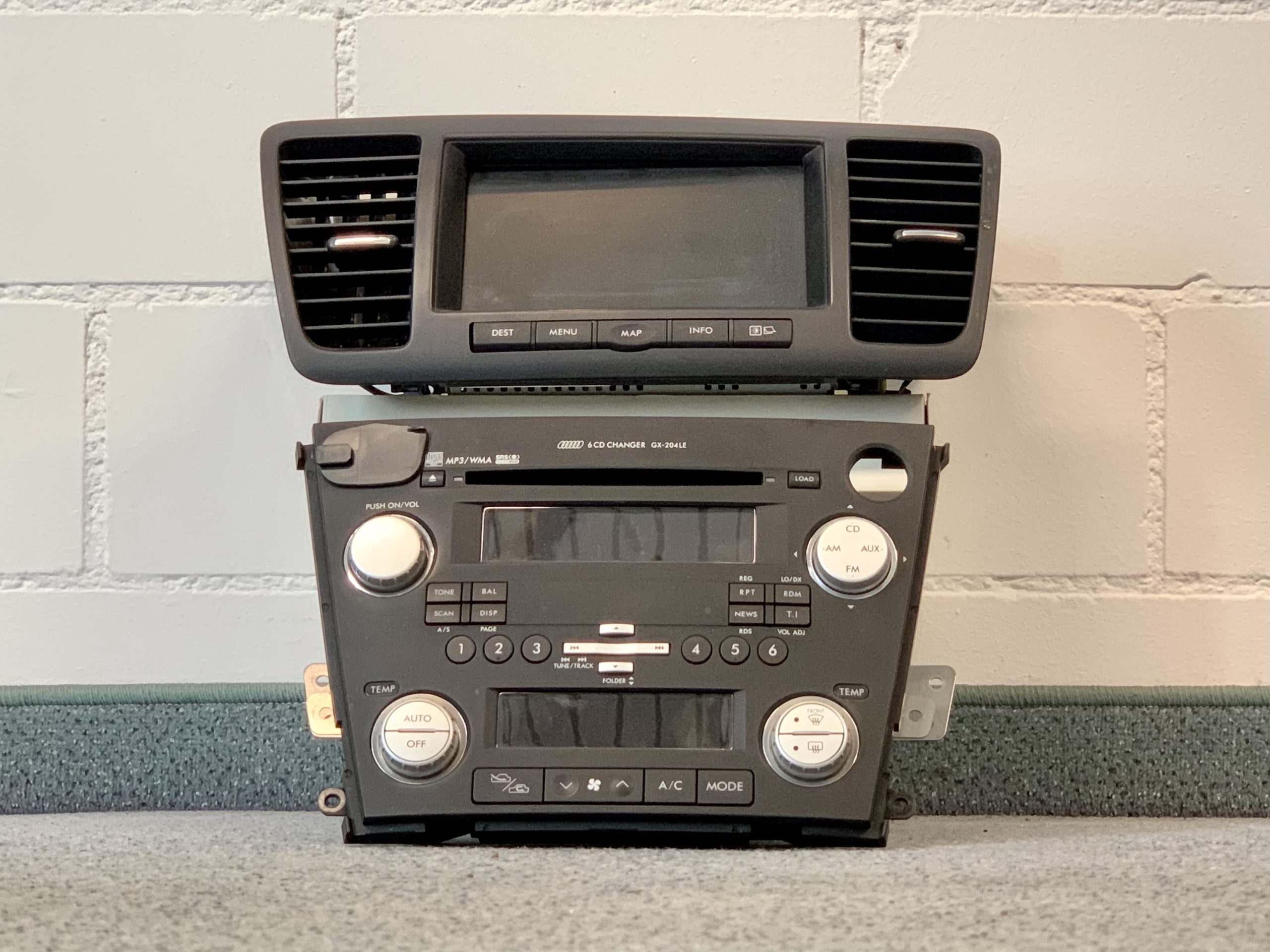

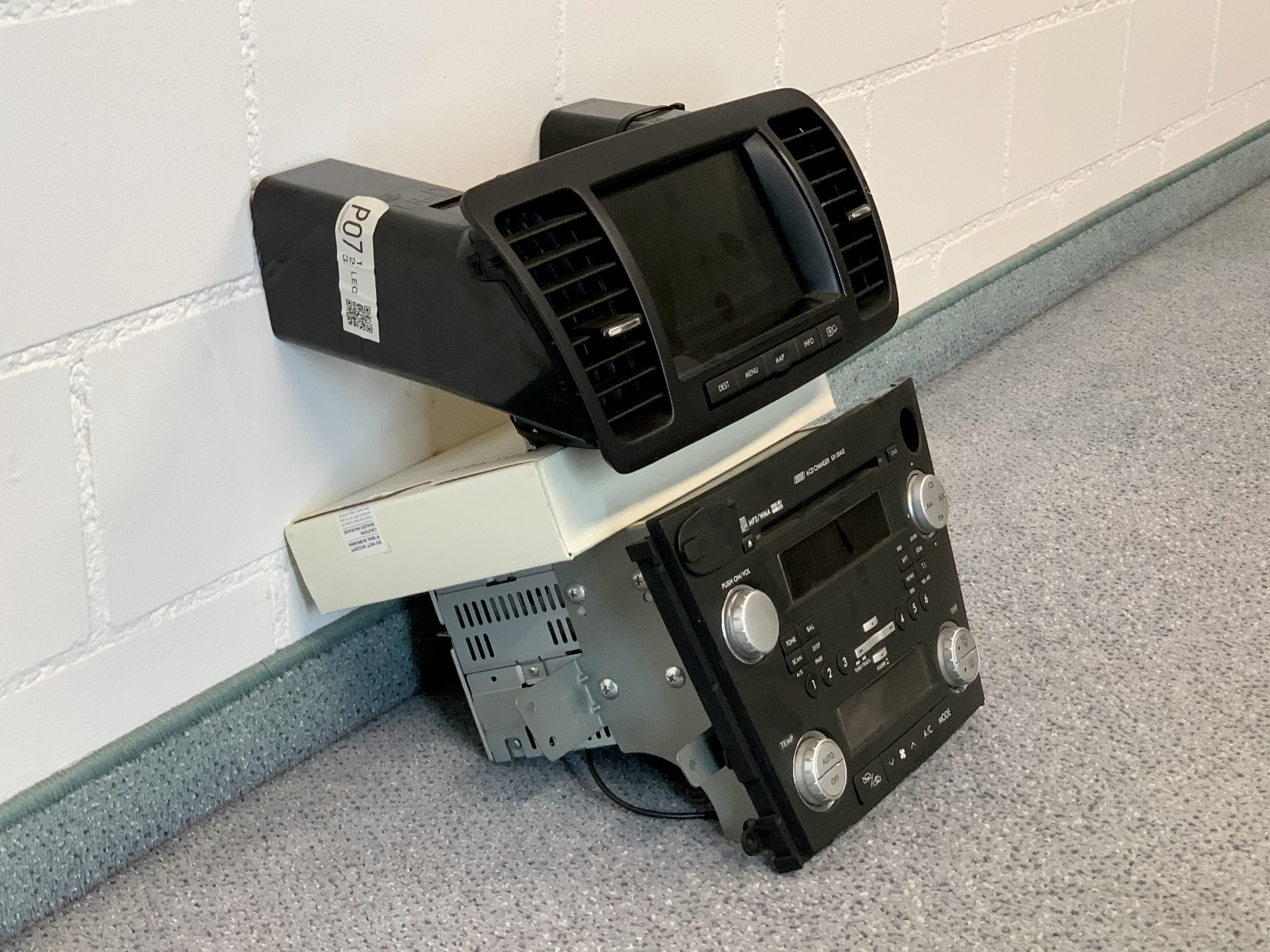

Subaru Legacy Outback Autoradio Lüftungcontroller Bordcomputer

CHF450.00

Produktbeschreibung

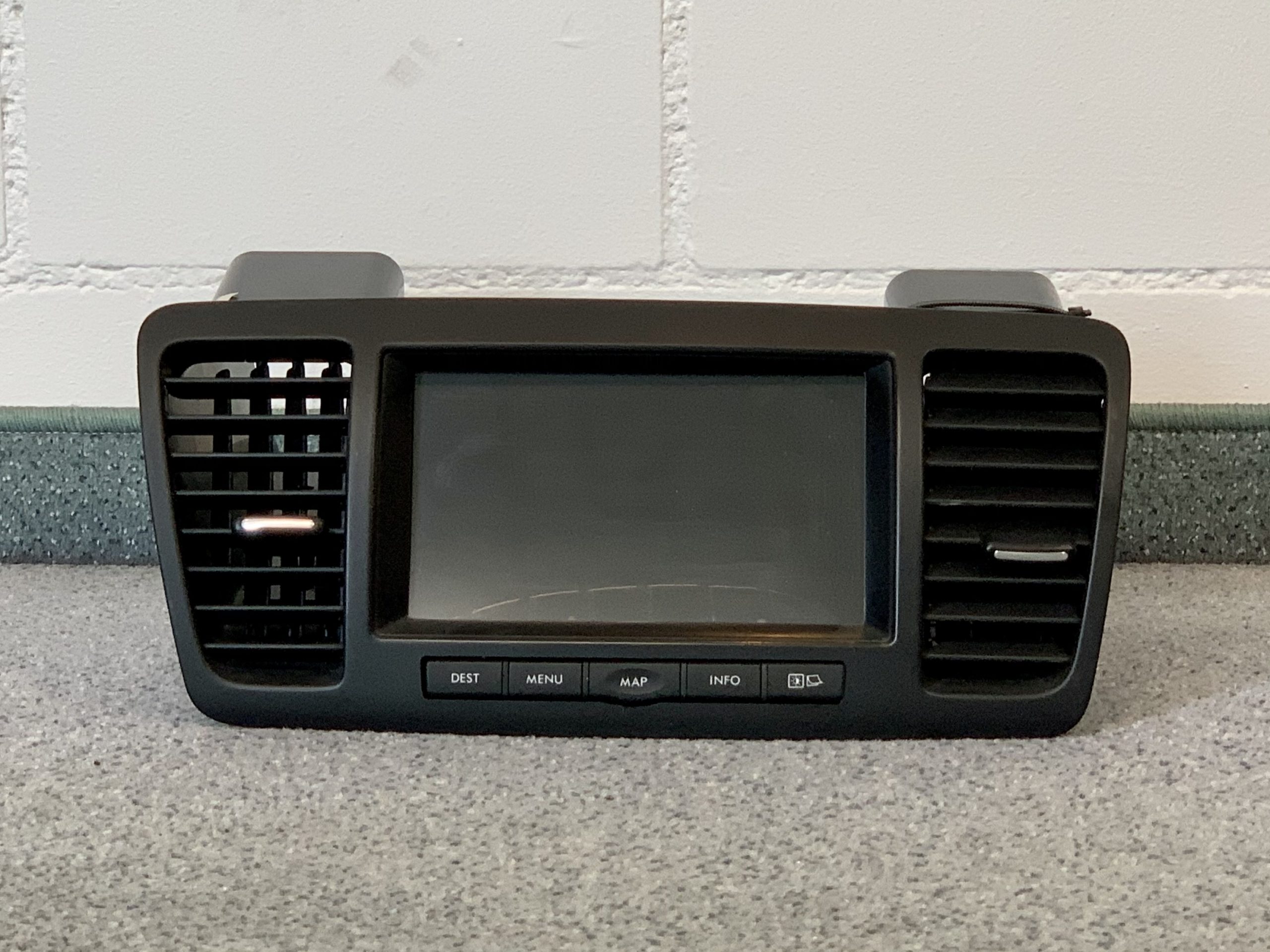

Subaru Legacy Outback  Lüftungcontroller Bordcomputer

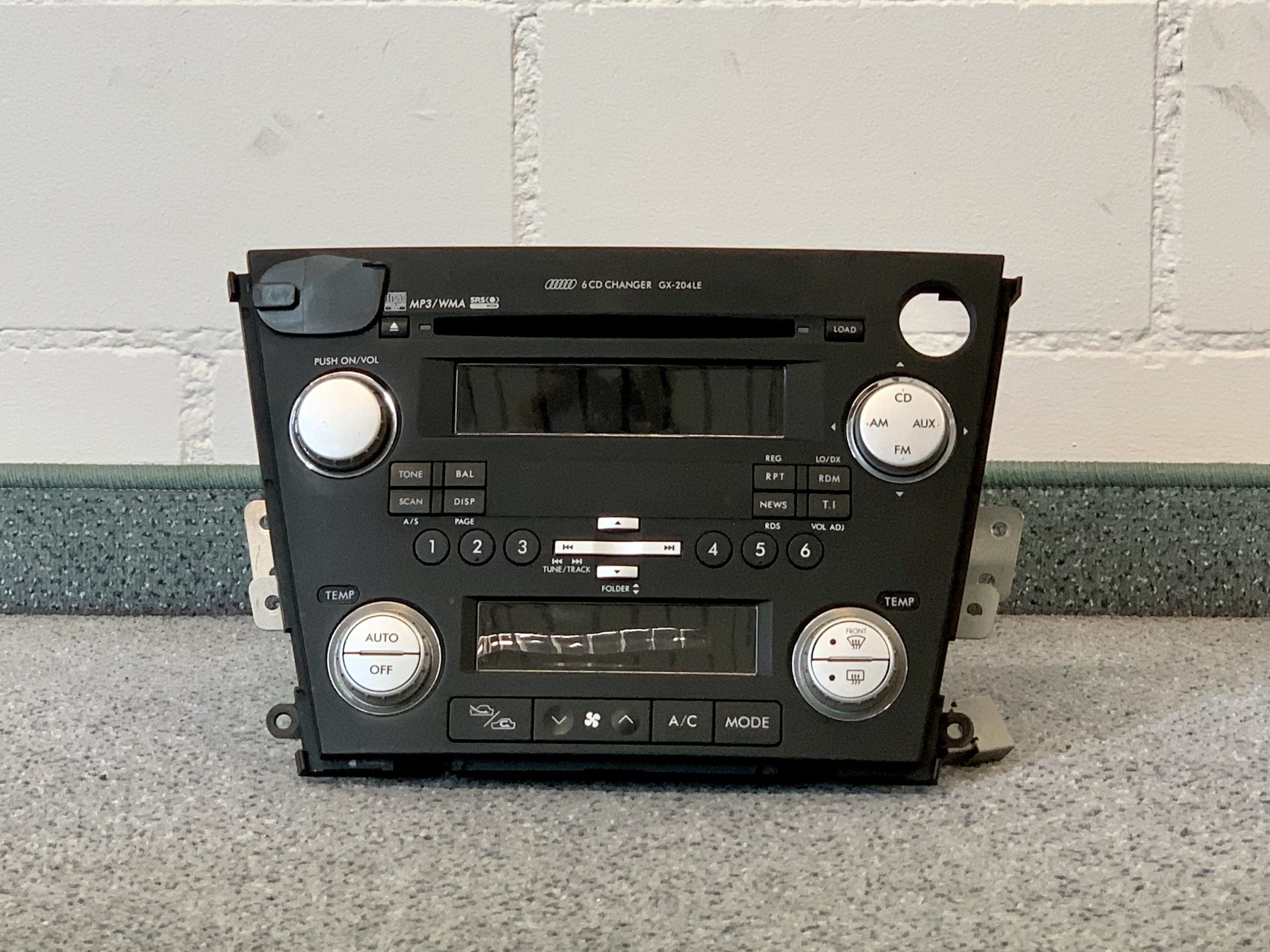

Autoradio GX 204LE, CD-Wechlser 6-fach

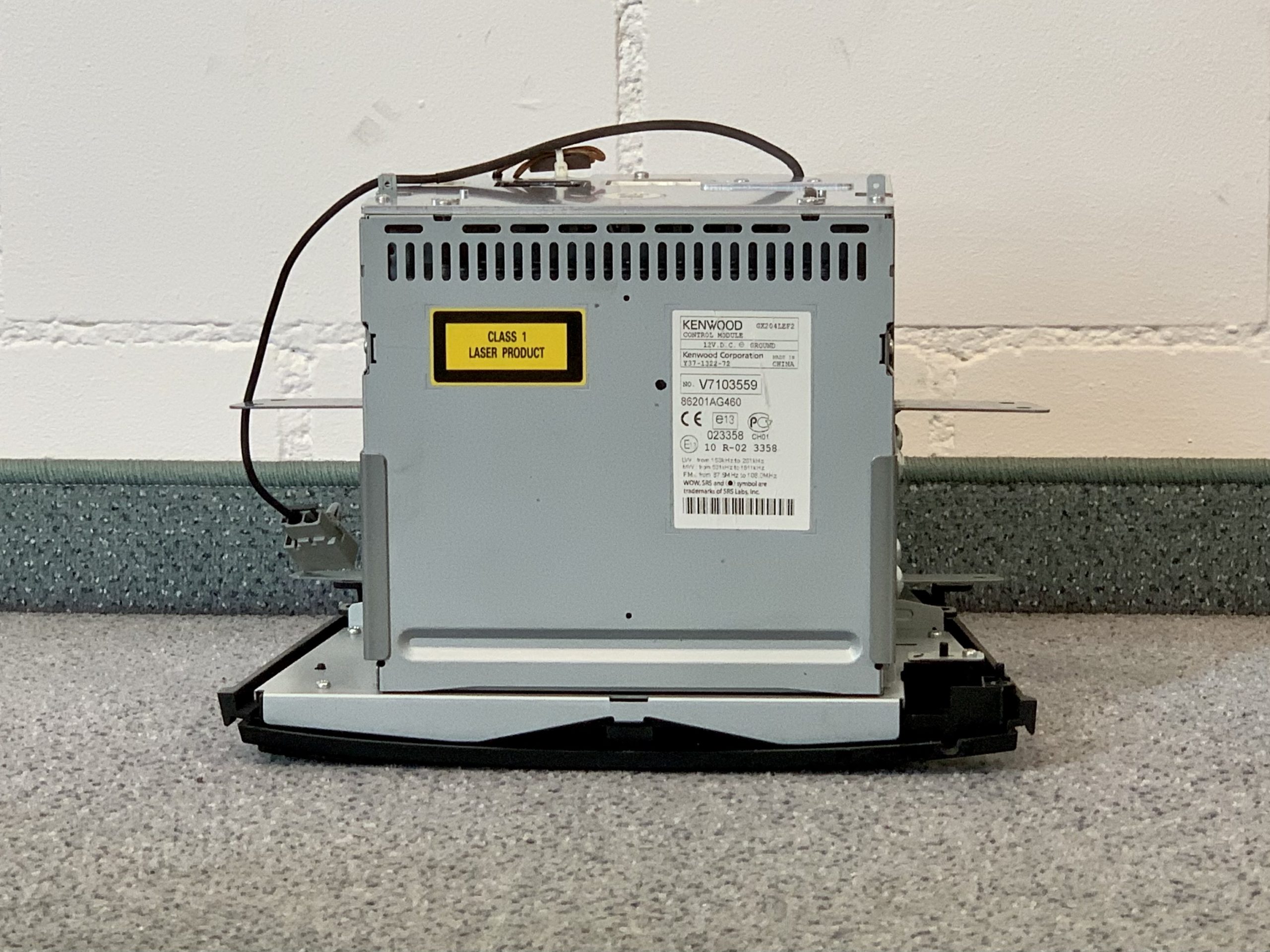

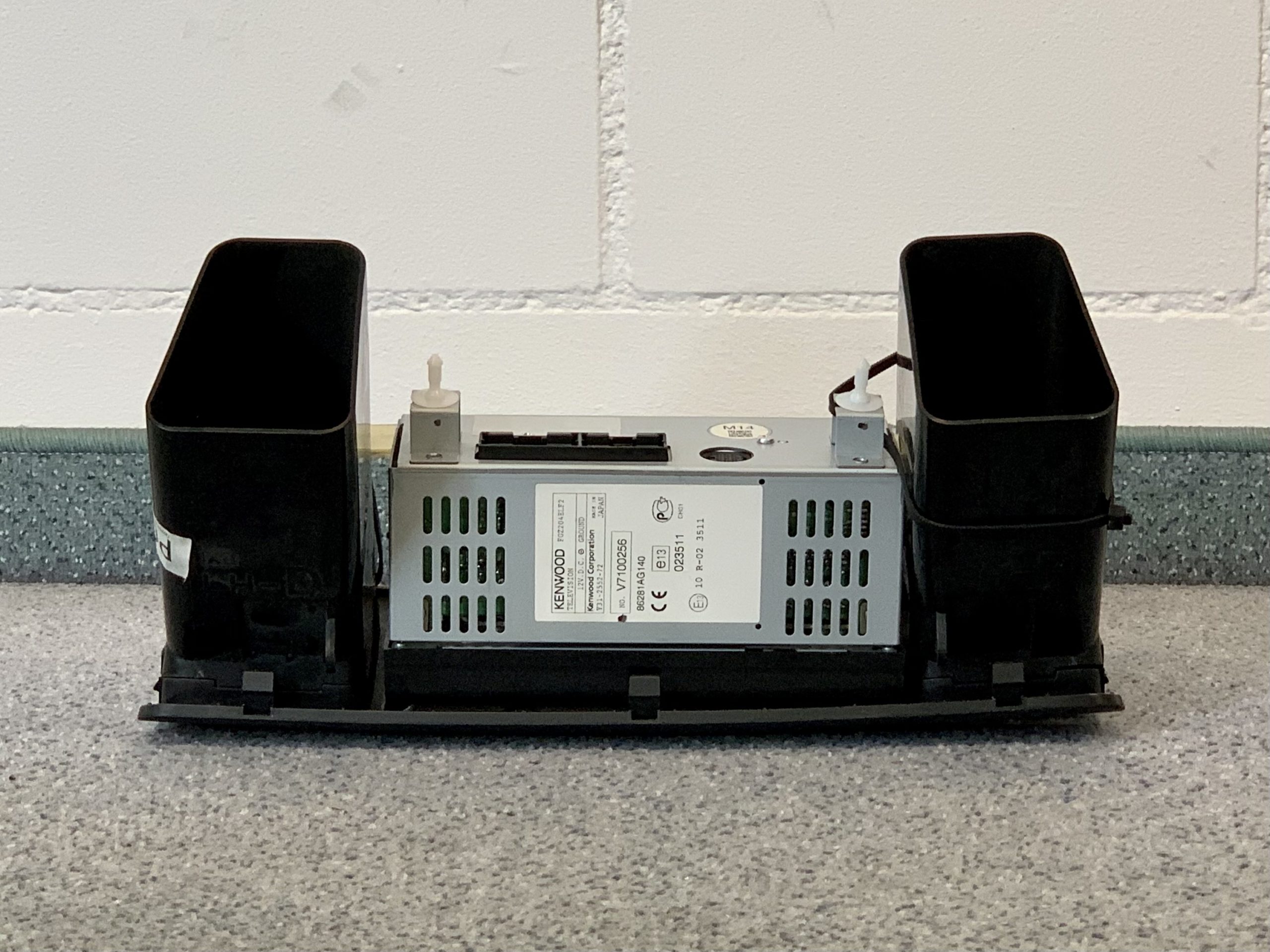

Kenwood Television, FGZ204ELF2, GX204LEF2, Kenwood Corporation, Y31-2552-72, Y37-1322-72, No. V7100256, No. V7103559, 86281AG140, 023511, 023358, 10R-02, 3511, 3358

Made in Japan

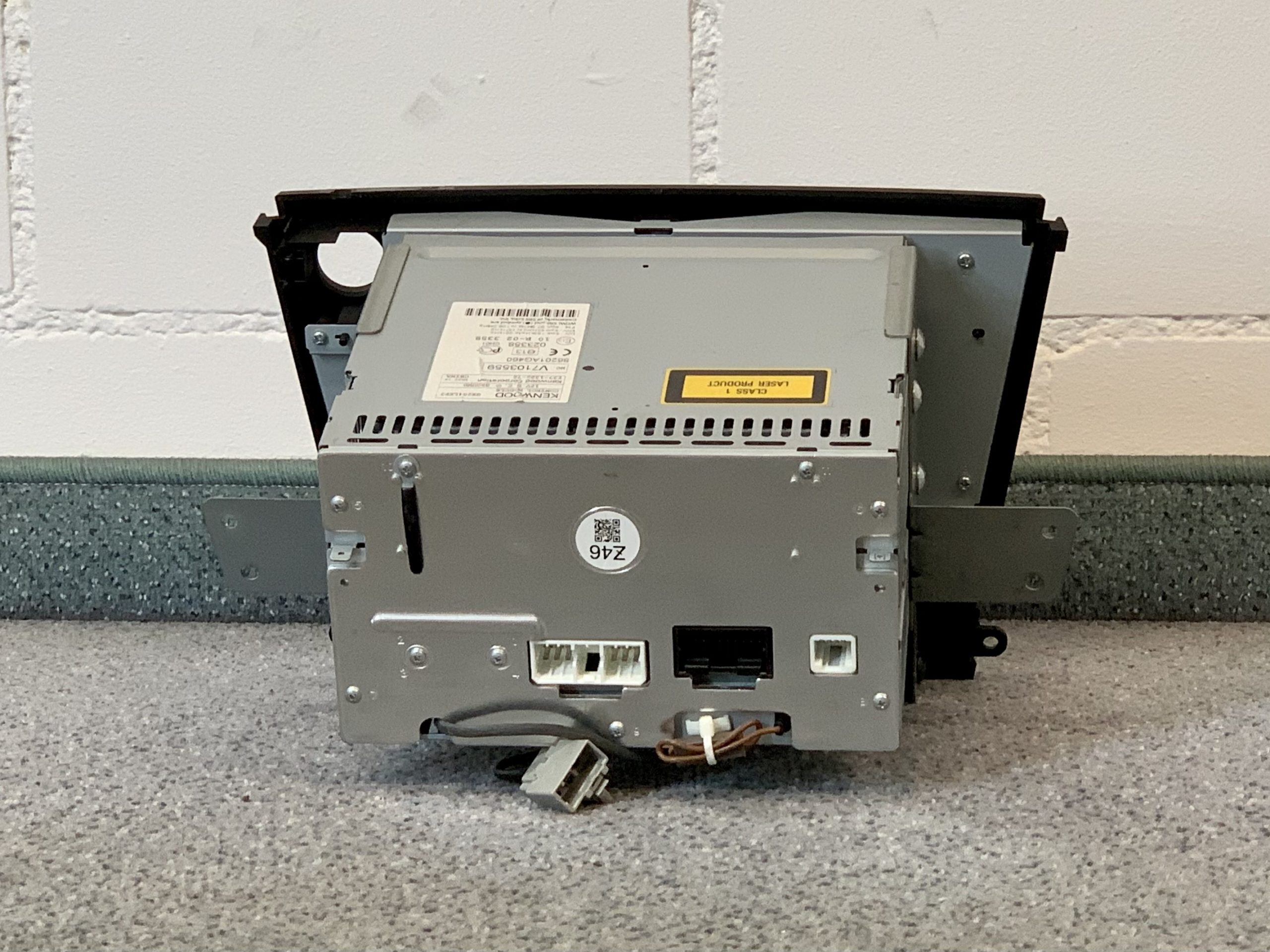

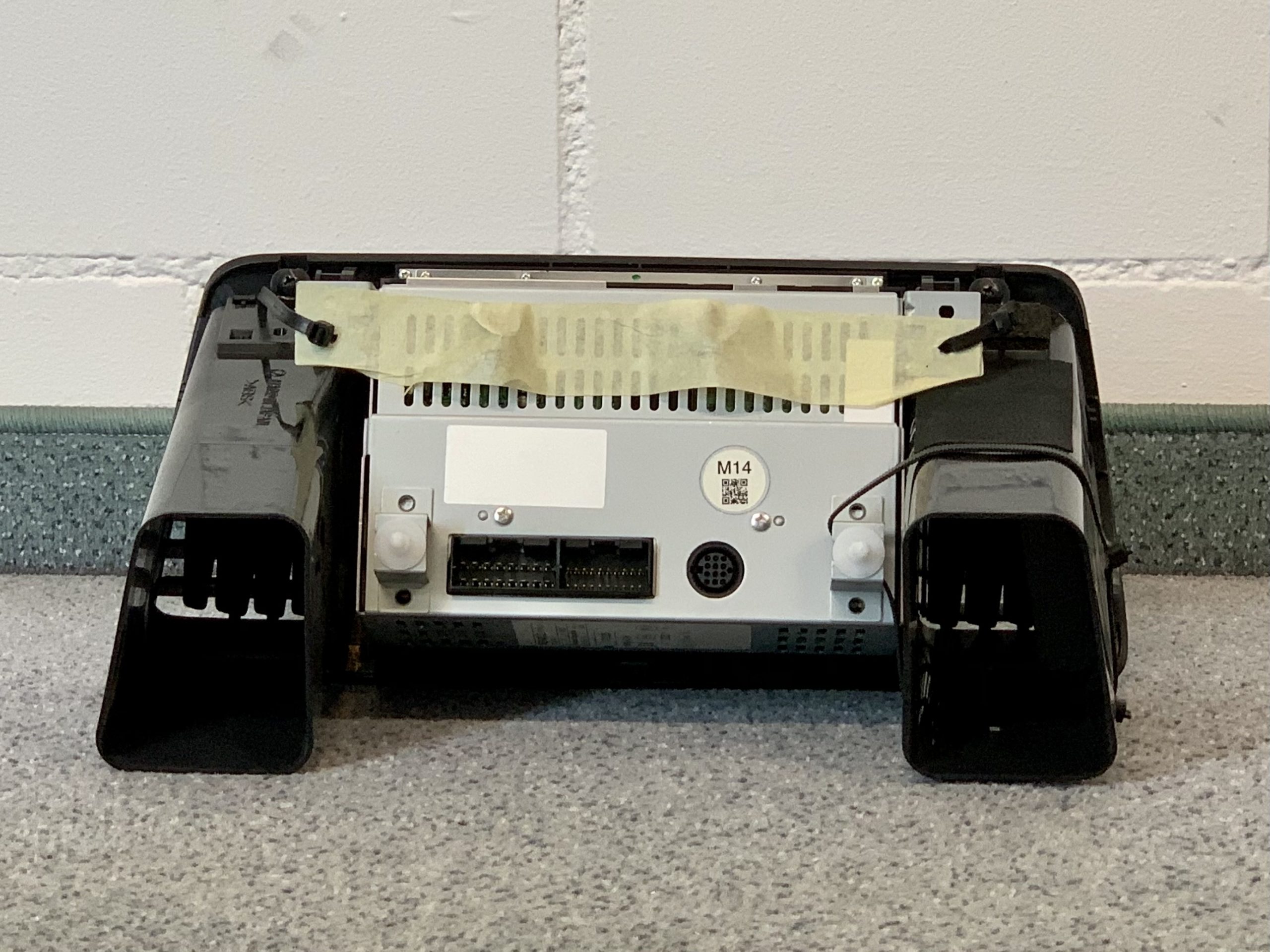

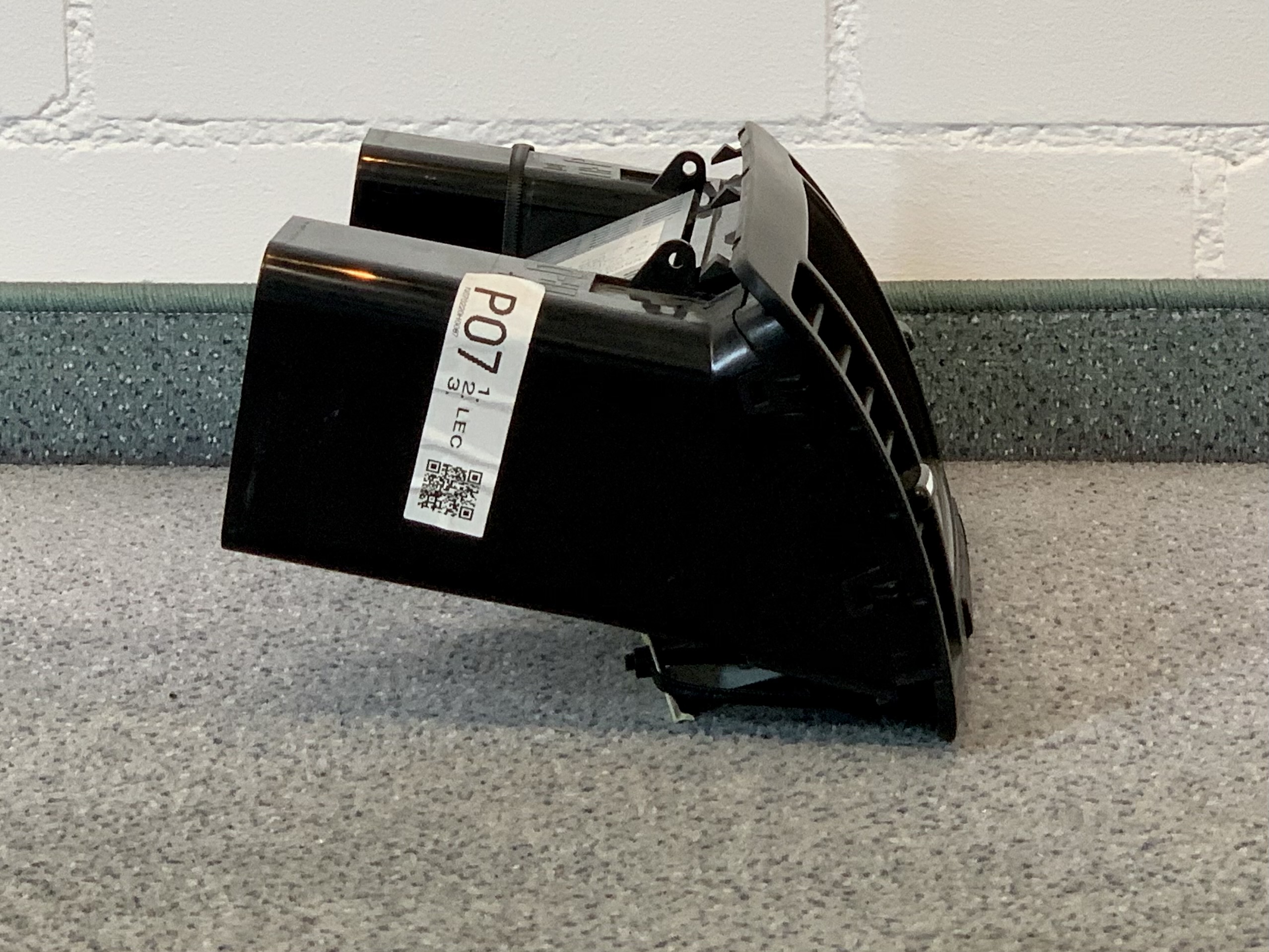

Z46, P07, 1. 2. 3. LEC, N070220H0087, M14

Spezifikationen

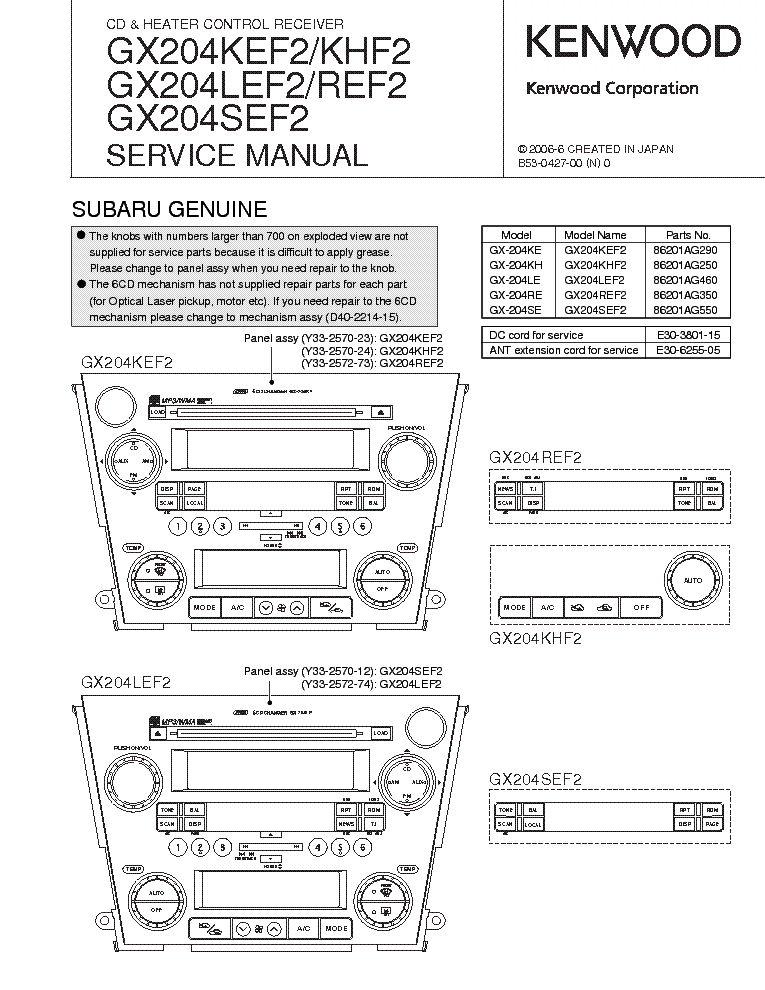

FM : GX204LEF2/REF2
Frequency Range ......................................... 87.5~108.0MHz
Channel Space Selection ............................................ 50kHz
Usable Sensitivity (S/N=26dB) ........................... 6dBµV EMF
Signal to Noise Ratio (MONO) ...................................... 60dB
Selectivity (±300kHz) .................................................... 80dB
Stereo Separation (1kHz) .............................................. 30dB
FM : GX204KEF2/KHF2/SEF2
Frequency Range ......................................... 87.5~108.0MHz
Channel Space Selection .......................................... 100kHz
Usable Sensitivity (S/N=30dB) ........................... 6dBµV EMF
Signal to Noise Ratio (MONO) ...................................... 65dB
Selectivity (±300kHz) .................................................... 80dB
Stereo Separation (1kHz) .............................................. 30dB
MW, LW : GX204LEF2/REF2
Frequency Range
MW .............................................................. 531~1611kHz
LW ................................................................. 153~281kHz
Channel Space Selection
MW ............................................................................ 9kHz
LW ............................................................................. 1kHz
Usable Sensitivity (S/N 20dB)
MW ............................................................... 29dBµV EMF
LW ................................................................ 35dBµV EMF
AM : GX204KEF2/KHF2/SEF2
Frequency Range ............................................ 531~1629kHz
Channel Space Selection ....................................... 9k/10kHz
Usable Sensitivity (S/N 20dB) .......................... 29dBµV EMF
CD
Digital Filter ...................................... 8 Times Over Sampling
D/A Converter ................................................................. 1Bit
Total Harmonic Distoytion .................................. 0.1% (1kHz)
S/N Ratio ........................................................... 73dB (1kHz)
Channel Separation .......................................... 70dB (1kHz)
Audio
Maximum Output Power ................................... 20W x 4 (4?)
Tone Action
Bass : 100Hz ........................................................... ±10dB
Mid : 396Hz ............................................................. ±10dB
Treble : 6.34kHz ....................................................... ±10dB
Spannung
Operating Voltage ................................... 13.2V (10.8~15.6V)
Current Consumption ...................................................... 10A
